  THE CLASSIC 350 SMALL-BLOCK WITH MODERN FEATURES
  As part of Chevrolet Performance's new line of Street Performance engines, the SP350 offers contemporary engine features on the classic Small-Block architecture, for a unique blend of the low-rpm torque 350 engines have always been known for, and is also higher-rpm performance comparable.
  The SP350's unique capability lies in its lightweight aluminum cylinder heads, which feature a valvetrain with beehivestyle valve springs, similar to the design of the high-revving LS engine family. They enable greater high-rpm performance and durability, allowing the engine to rev higher and maximize the airflow capability of the heads - all without sacrificing the 350's signature torque.

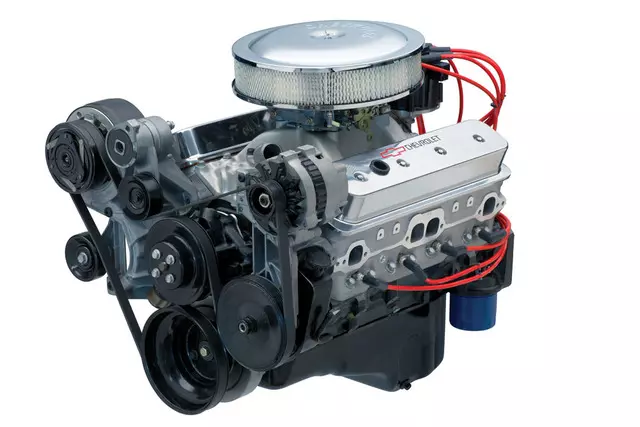

  Our SP350 Turn-Key package comes complete with the distributor and balancer installed. The carburetor, starter, fuel pump air conditioning pump, alternator, Front-End Accessory Drive Kit and more are also included, ready to bolt on.
  TECH SPECS
  Part Number: 19333158
  Engine Type: Chevy Small-Block V-8
  Displacement (cu in): 350
  Bore x Stroke (in): 4.000 x 3.480
  Block (P/N 10243870): Cast-iron with 4-bolt main caps
  Crankshaft (P/N 12670965): Forged steel (shot peened)
  Connecting Rods (P/N 10108688): Powdered metal
  Pistons (P/N 10159436): Hypereutectic aluminum
  Camshaft Type (P/N 10185071): Hydraulic roller
  Camshaft Lift (in): .474 intake / .510 exhaust
  Camshaft Duration (@.050 in): 208° intake / 221° exhaust
  Cylinder Heads (P/N 19300955): Fast Burn aluminum; 62cc chambers
  Valve Size (in): 2.000 intake / 1.550 exhaust
  Compression Ratio: 9.6:1 nominal
  Rocker Arms (P/N 10089648): Stamped steel
  Rocker Arm Ratio: 1.5:1
  Recommended Fuel: Premium pump
  Ignition Timing: 36? Total @ 4,000 rpm
  Maximum Recommended rpm: 5,800
  Balanced: External
  Flexplate (P/N 14088765): 12.750"
  Intake Manifold (P/N 12366573): Dual Plane
  INSTALLATION NOTES

  • SP350 Base Engine, P/N 19333157 is also available
  • Comes with 12.750" externally balanced 153-tooth automatic transmission flexplate. Requires externally balanced flywheel for manual transmission.
  • Requires fuel line from fuel pump to carburetor
  • Designed for pre-1976 street vehicles or any off-road vehicle
  • Some assembly and minor engine tuning required
  • Not intended for marine applications
  NOTE: Distributor with melonized steel gear MUST be used with long-blocks and Partial engines with steel camshafts, or engine damage will occur.

• Replaces:

  19333158, 19355667, 19417623, 19418137, 19418997, 19432102, 19433040
