Home 1986 Pontiac Grand Am SE 3.0L V6 - Gas Headlamp Components

Headlamp Components for 1986 Pontiac Grand Am

Headlamp Components for 1986 Pontiac Grand Am #0

Headlamp Components for 1986 Pontiac Grand Am #1

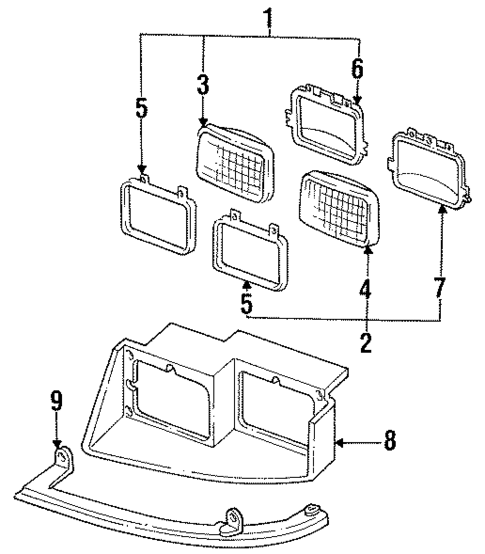

Headlamp Components for 1986 Pontiac Grand Am #0

1

1

2

2

3

3

4

4

5

5

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

16501470 - Electrical: Headlamp Assembly for Buick: Skylark, Somerset | Cadillac: Cimarron | Chevrolet: Camaro, Cavalier, Celebrity | Oldsmobile: Calais | Pontiac: 6000, Grand Am Image

Headlamp Assembly

GM

Positions: Left

Description: 1983-87 sealed beam with foglamps, inner, with quartz. 1984-87, coupe, inner, quartz. Sealed beam, 1982-86, sport, inner, quartz. Sealed beam type, inner, quartz. Sealed beam headlamps, inner, black. Standard headlamps, with deluxe trim, inner. Sealed beam, 1986, sport, inner quartz.

1

16501471 - Electrical: Headlamp Assembly for Buick: Skylark, Somerset | Cadillac: Cimarron | Chevrolet: Camaro, Cavalier, Celebrity | Oldsmobile: Calais | Pontiac: 6000, Grand Am Image

Headlamp Assembly

GM

Positions: Right

Description: 1983-87 sealed beam with foglamps, inner, with quartz. 1984-87, coupe, inner, quartz. Sealed beam, 1982-86, sport, inner, quartz. Sealed beam type, inner, quartz. Sealed beam headlamps, inner, black. Standard headlamps, with deluxe trim, inner. Sealed beam, 1986, sport, outer quartz.

2

16500659 - Electrical: Headlamp Assembly for Buick: Skylark, Somerset | Cadillac: Cimarron | Chevrolet: Camaro, Cavalier, Celebrity | Oldsmobile: Calais, Firenza | Pontiac: 6000, Grand Am, Grand Prix, J2000 Sunbird, Sunbird Image

Headlamp Assembly

GM

Positions: Left

2

16500660 - Electrical: Headlamp Assembly for Buick: Skylark, Somerset | Cadillac: Cimarron | Chevrolet: Camaro, Cavalier, Celebrity | Oldsmobile: Calais, Firenza | Pontiac: 6000, Grand Am, Grand Prix, J2000 Sunbird, Sunbird Image

Headlamp Assembly

GM

Positions: Right

3

5930567 - Electrical: Sealed Beam for Buick: Century, Electra, LeSabre, Regal, Riviera, Skyhawk, Skylark, Somerset, Somerset Regal | Cadillac: Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Blazer, C/K Pickup, C1500, C2500, C3500, Camaro, Caprice, Cavalier, Celebrity, El Camino, G10, G20, G30, Impala, K1500 Pickup, K2500 Pickup, K3500 Pickup, K5 Blazer, Monte Carlo, Nova, P20, P30, R10, R20, R30, Suburban C10, Suburban C20, Suburban K10, Suburban K20, Suburban R10, Suburban R20, Suburban V10, Suburban V20, V10, V20, V30 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, Caballero, G1500, G2500, G3500, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500 | Oldsmobile: 98, Calais, Custom Cruiser, Cutlass Calais, Cutlass Ciera, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Firenza, Toronado | Pontiac: 6000, Bonneville, Firebird, Grand Am, Grand Prix, J2000 Sunbird, Parisienne, Safari, Sunbird Image

Sealed Beam

GM

Positions: Left

4

16532129 - Electrical: Sealed Beam for Buick: Century, Electra, LeSabre, Regal, Riviera, Skyhawk, Skylark, Somerset, Somerset Regal | Cadillac: Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Blazer, C/K Pickup, C1500, C2500, C3500, Camaro, Caprice, Cavalier, Celebrity, El Camino, G10, G20, G30, Impala, K1500 Pickup, K2500 Pickup, K3500 Pickup, K5 Blazer, Monte Carlo, Nova, P20, P30, R10, R20, R30, Suburban C10, Suburban C20, Suburban K10, Suburban K20, Suburban R10, Suburban R20, Suburban V10, Suburban V20, V10, V20, V30 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, Caballero, G1500, G2500, G3500, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500 | Oldsmobile: 98, Calais, Custom Cruiser, Cutlass Calais, Cutlass Ciera, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Firenza, Toronado | Pontiac: 6000, Bonneville, Firebird, Grand Am, Grand Prix, J2000 Sunbird, Parisienne, Safari, Sunbird Image

Sealed Beam

GM

Positions: Right

5

5966170 - Electrical: Sealed Beam Retainer Ring for Buick: Century, Electra, LeSabre, Regal, Riviera, Skyhawk, Skylark, Somerset, Somerset Regal | Cadillac: Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Blazer, C/K Pickup, Caprice, Cavalier, Celebrity, El Camino, G10, G20, G30, Impala, K5 Blazer, Monte Carlo, P20, P30, R10, R20, R30, Suburban C10, Suburban C20, Suburban K10, Suburban K20, Suburban R10, Suburban R20, Suburban V10, Suburban V20, V10, V20, V30 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, Caballero, G1500, G2500, G3500, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, Sonoma, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500 | Oldsmobile: 98, Bravada, Calais, Custom Cruiser, Cutlass Calais, Cutlass Ciera, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Firenza, Toronado | Pontiac: Bonneville, Grand Am, Grand Prix, J2000 Sunbird, Parisienne, Safari, Sunbird Image

Headlamp Assembly Retainer Ring

GM

5

5973455 - Electrical: Sealed Beam Retainer Ring for Buick: Electra, Skylark, Somerset, Somerset Regal | Cadillac: Cimarron | Chevrolet: Camaro, Cavalier, Celebrity | Oldsmobile: Calais, Firenza | Pontiac: 6000, Firebird, Grand Am, J2000 Sunbird, Sunbird Image

Sealed Beam Retainer Ring

GM

6

5966082 - Electrical: Sealed Beam Mount Ring for Buick: Century, Electra, LeSabre, Regal, Riviera, Skyhawk, Skylark, Somerset, Somerset Regal | Cadillac: Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Blazer, C/K Pickup, Camaro, Caprice, Cavalier, Celebrity, El Camino, G10, G20, G30, Impala, K5 Blazer, Monte Carlo, P20, P30, R10, R20, R30, Suburban C10, Suburban C20, Suburban K10, Suburban K20, Suburban R10, Suburban R20, Suburban V10, Suburban V20, V10, V20, V30 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, Caballero, G1500, G2500, G3500, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500 | Oldsmobile: 98, Calais, Custom Cruiser, Cutlass Calais, Cutlass Ciera, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Firenza, Toronado | Pontiac: 6000, Grand Am, Grand Prix, J2000 Sunbird, Parisienne, Safari, Sunbird Image

Mount Ring

GM

Positions: Right

6

5966083 - Electrical: Sealed Beam Mount Ring for Buick: Century, Electra, LeSabre, Regal, Riviera, Skyhawk, Skylark, Somerset, Somerset Regal | Cadillac: Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Blazer, C/K Pickup, Camaro, Caprice, Cavalier, Celebrity, El Camino, G10, G20, G30, Impala, K5 Blazer, Monte Carlo, P20, P30, R10, R20, R30, Suburban C10, Suburban C20, Suburban K10, Suburban K20, Suburban R10, Suburban R20, Suburban V10, Suburban V20, V10, V20, V30 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, Caballero, G1500, G2500, G3500, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500 | Oldsmobile: 98, Calais, Custom Cruiser, Cutlass Calais, Cutlass Ciera, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Firenza, Toronado | Pontiac: 6000, Grand Am, Grand Prix, J2000 Sunbird, Parisienne, Safari, Sunbird Image

Mount Ring

GM

Positions: Left

7

5966081 - Electrical: Sealed Beam Mount Ring for Buick: Century, Electra, LeSabre, Regal, Riviera, Skyhawk, Skylark, Somerset, Somerset Regal | Cadillac: Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Blazer, C/K Pickup, Camaro, Caprice, Cavalier, Celebrity, G10, G20, G30, Impala, K5 Blazer, Monte Carlo, P20, P30, R10, R20, R30, S10, Suburban C10, Suburban C20, Suburban K10, Suburban K20, Suburban R10, Suburban R20, Suburban V10, Suburban V20, V10, V20, V30 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, G1500, G2500, G3500, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, Sonoma, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500 | Oldsmobile: 98, Calais, Custom Cruiser, Cutlass Calais, Cutlass Ciera, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Firenza, Toronado | Pontiac: 6000, Bonneville, Firebird, Grand Am, Grand Prix, J2000 Sunbird, Parisienne, Safari, Sunbird Image

Sealed Beam Mount Ring

GM

Positions: Right

7

5966080 - Electrical: Sealed Beam Mount Ring for Buick: Century, Electra, LeSabre, Regal, Riviera, Skyhawk, Skylark, Somerset, Somerset Regal | Cadillac: Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Blazer, C/K Pickup, Camaro, Caprice, Cavalier, Celebrity, G10, G20, G30, Impala, K5 Blazer, Monte Carlo, P20, P30, R10, R20, R30, S10, Suburban C10, Suburban C20, Suburban K10, Suburban K20, Suburban R10, Suburban R20, Suburban V10, Suburban V20, V10, V20, V30 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, G1500, G2500, G3500, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, Sonoma, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500 | Oldsmobile: 98, Calais, Custom Cruiser, Cutlass Calais, Cutlass Ciera, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Firenza, Toronado | Pontiac: 6000, Bonneville, Firebird, Grand Am, Grand Prix, J2000 Sunbird, Parisienne, Safari, Sunbird Image

Sealed Beam Mount Ring

GM

Positions: Left

8

10027030 - Electrical: Bezel for Pontiac: Grand Am Image

Bezel

GM

Positions: Right

Description: Sealed beam type.

8

10027031 - Electrical: Bezel for Pontiac: Grand Am Image

Bezel

GM

Positions: Left

Description: Sealed beam type.

9

10037229 - Electrical: Filler for Pontiac: Grand Am Image

Filler

GM

Positions: Left

Description: Sealed beam type.

9

10037228 - Electrical: Filler for Pontiac: Grand Am Image

Filler

GM

Positions: Right

Description: Sealed beam type.

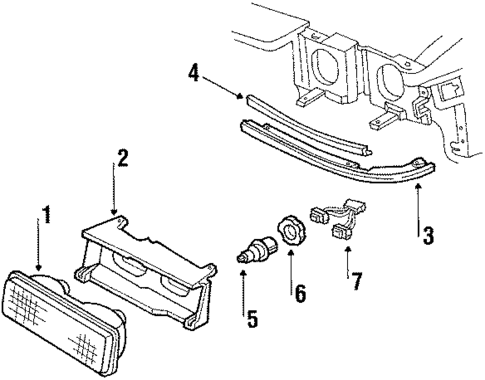

Headlamp Components for 1986 Pontiac Grand Am #1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

No.

Part # / Description / Price

Price

1

16505423 - Electrical: Lens & Housing for Pontiac: Grand Am Image

Lens & Housing

GM

Positions: Left

Description: Composite. Pontiac. Left.

1

16505424 - Electrical: Lens & Housing for Pontiac: Grand Am Image

Lens & Housing

GM

Positions: Right

Description: Composite. Pontiac. Right.

2

16516782 - Electrical: Lens & Housing Mount Bracket for Pontiac: Grand Am Image

Lens & Housing Mount Bracket

GM

Positions: Right

Description: Composite.

2

16516781 - Electrical: Lens & Housing Mount Bracket for Pontiac: Grand Am Image

Lens & Housing Mount Bracket

GM

Positions: Left

Description: Composite.

3

10035819 - Electrical: Filler for Pontiac: Grand Am Image

Filler

GM

Positions: Left

Description: Composite.

3

10035818 - Electrical: Filler for Pontiac: Grand Am Image

Filler

GM

Positions: Right

Description: Composite.

4

10041853 - Electrical: Molding for Pontiac: Grand Am Image

Molding

GM

Description: Composite.

5

19257055 - Electrical: Headlamp Bulb for Buick: Commercial Chassis, Electra, Regal, Roadmaster, Skylark | Cadillac: Allante, Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Caprice, Cavalier, Impala, Monte Carlo, Spectrum, Tracker, Venture | Oldsmobile: 98, Achieva, Calais, Custom Cruiser, Cutlass Calais, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Silhouette | Pontiac: 6000, Bonneville, Grand Am, Grand Prix, LeMans, Montana, Trans Sport Image

Headlamp Bulb

GM

Description: Provides illumination for visibility and convenience This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors

MSRP $10.39

$6.35

MSRP $10.39

$6.35

5

9004 - Electrical: ACDelcoâ„¢ Headlamp Bulb for Buick: Commercial Chassis, Electra, Regal, Roadmaster, Skylark | Cadillac: Allante, Brougham, Cimarron, DeVille, Eldorado, Fleetwood, Seville | Chevrolet: Caprice, Cavalier, Impala, Monte Carlo, Spectrum, Tracker, Venture | Oldsmobile: 98, Achieva, Calais, Custom Cruiser, Cutlass Calais, Cutlass Cruiser, Cutlass Salon, Cutlass Supreme, Delta 88, Silhouette | Pontiac: 6000, Bonneville, Grand Am, Grand Prix, LeMans, Montana, Trans Sport Image

Acdelco™ Headlamp Bulb

GM

6

16505888 - Electrical: Headlamp Bulb Retainer for Buick: Commercial Chassis, Electra, Roadmaster, Skylark | Cadillac: Brougham, Cimarron, Eldorado, Seville | Chevrolet: Caprice, Cavalier, Impala, Venture | Oldsmobile: 98, Achieva, Calais, Custom Cruiser, Cutlass Calais, Delta 88, Silhouette | Pontiac: Grand Am, Grand Prix, Montana, Sunfire, Trans Sport Image

Bulb Retainer

GM

MSRP $4.58

$3.47

MSRP $4.58

$3.47

7

16504020 - Electrical: Harness for Cadillac: Eldorado, Seville | Oldsmobile: Calais, Cutlass Calais | Pontiac: Grand Am Image

Wire Harness

GM

Description: Composite headlamps with quad 4.

Related Parts

Part # / Description / Price

Price

15714775 - Electrical: Adjust Screw for Buick: Century, Electra, LeSabre, Regal, Riviera, Skylark, Somerset, Somerset Regal | Cadillac: Brougham | Chevrolet: Blazer, C1500, C2500, C3500, Camaro, Cavalier, Celebrity, Express 1500, Express 2500, Express 3500, K1500 Pickup, K2500 Pickup, K3500 Pickup, Monte Carlo, P30, S10 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, Jimmy, K1500 Pickup, K2500 Pickup, K3500 Pickup, Savana 1500, Savana 2500, Savana 3500, Sonoma | Oldsmobile: 98, Bravada, Custom Cruiser, Cutlass Ciera, Cutlass Cruiser, Cutlass Supreme, Delta 88, Silhouette, Toronado | Pontiac: 6000, Bonneville, Firebird, Grand Am, Grand Prix, Sunbird Image

Headlamp Adjuster

GM

Description: Helps move the lamp housing to align the headlamp beam This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors

MSRP $16.27

$12.01

MSRP $16.27

$12.01

16504040 - Electrical: Adjust Gear Retainer for Buick: Electra | Cadillac: Eldorado, Seville | Chevrolet: Corsica, Lumina APV | Oldsmobile: Silhouette | Pontiac: Grand Am, Grand Prix, Trans Sport Image

Retainer

GM

Description: 1992-93 le, 1994-96 gt. 1990-93. 1987-90 composite type. Bracket.

16504041 - Electrical: Slide Assembly for Cadillac: Eldorado, Seville | Oldsmobile: 98, Calais, Cutlass Calais, Delta 88 | Pontiac: Grand Am Image

Mount Bracket Screw

GM

Positions: Right

Description: Composite headlamps. 1990-91. 1988-89. 1987.

16504042 - Electrical: Slide Assembly for Cadillac: Eldorado, Seville | Oldsmobile: 98, Calais, Cutlass Calais, Delta 88 | Pontiac: Grand Am Image

Mount Bracket Screw

GM

Positions: Left

Description: Composite headlamps. 1990-91. 1988-89. 1987.

16508139 - Electrical: Adjust Gear for Buick: Electra | Cadillac: Eldorado, Seville | Oldsmobile: Delta 88 | Pontiac: Grand Am, Grand Prix Image

Adjust Gear

GM

Description: 1992-93 le, 1994-96 gt, horizontal. 1988-90 coupe without turbo, 1990 se & le sedan. 1989-90 coupe with turbo. 1990-91. 1988-89. 1987. 1991 le sedan.

16509227 - Electrical: Slide Pivot for Buick: Commercial Chassis, Regal, Roadmaster | Cadillac: Fleetwood | Chevrolet: Caprice, Impala | Oldsmobile: Achieva, Calais, Custom Cruiser, Cutlass Calais, Cutlass Supreme | Pontiac: Grand Am, Grand Prix Image

Slide Pivot

GM

Description: 2 door, inner. 1992-93 le, 1994-96 gt. 2 door, 1988-91, inboard, 1 piece design. Composite headlamps with quad 4. 1992-95. Station wagon. 1988-90 coupe without turbo, 1990 se & le sedan. 1989-90 coupe with turbo. 1991 le sedan.

16509247 - Electrical: Adjust Screw for Cadillac: DeVille, Fleetwood | Pontiac: Grand Am Image

Adjust Screw

GM

Description: Composite. 1987-88, vertical. 1989-90, vertical.

5974145 - Electrical: Headlamp Assembly for Pontiac: Grand Am Image

Headlamp Assembly

GM

Positions: Left

Description: Composite. Pontiac. Left.

5974146 - Electrical: Headlamp Assembly for Pontiac: Grand Am Image

Headlamp Assembly

GM

Positions: Right

Description: Composite. Pontiac. Right.
